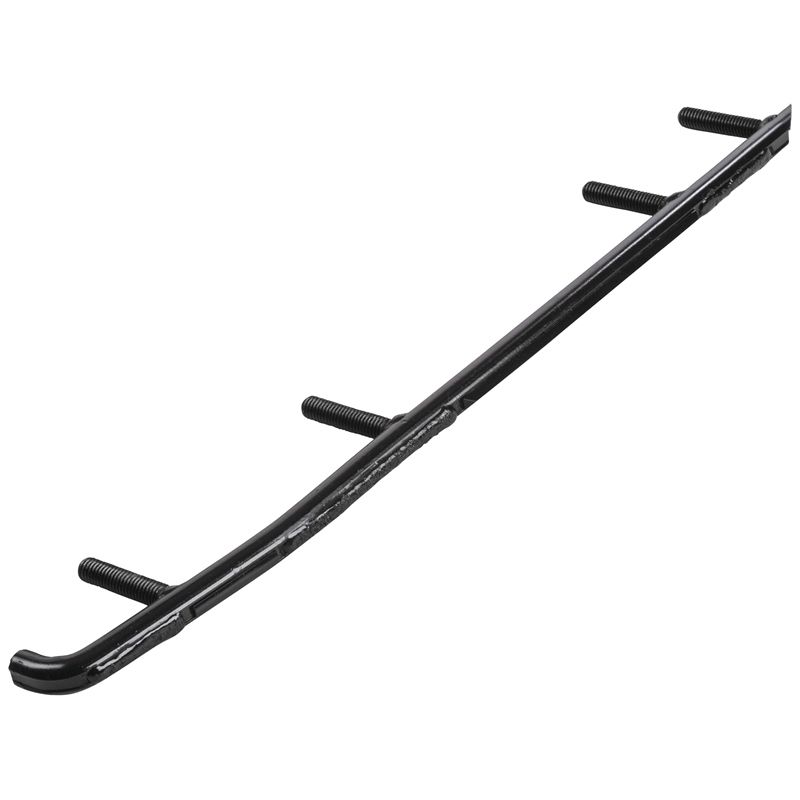

Features a 4" section of carbide, on an 1/2" round wearbar, with 4-bolt studs
Ideal on ice and hardpack, but works well anywhere
May provide a noted speed increase compared to dual or shaper wearbars
The last picture shows the different Arctic Cat ski styles
Sold in individually - Includes 1 wearbar only - enough for 1 ski
Does NOT include lock nuts - Uses 4 of the 8040-486 nuts (Sold separately)
These come from the factory on many 2002-2026 models

These wearbars use a 4-bolt stud pattern. When replacing the wearbars on models with a 3-bolt stud carbide, it will be necessary to drill the rear 4th mounting hole in the ski.

Replaces Part # 1703-218, 2703-375

Fits Models:

2005-2026 Saddleless Skis
2009-2015 Bearcat
2016-2020 Bearcat 2000
2006-2008 Bearcat Wide Track
2021-2024 Blast LT, M, XR, ZR
2006-2011 Crossfire
2003-2006 Firecat
2007-2013 F
2007-2008 Jaguar Z1
2015-2020 Lynx
2005-2026 M
2025-2026 Norseman 400
2015-2026 Pantera
2006-2007 Panther
2020-2026 Riot
2004-2006 Sabercat
2008-2014 T Series
2004-2006 T660
2012-2019 XF
2009-2011 Z1
2002-2006 ZR
2014-2026 ZR
2002 Z 440 Sno Pro
2002-2003 440 Sno Pro
2010-2014 Sno Pro 500
2008-2011 Sno Pro 600
(Excludes 2016-2024 Bearcat/Norseman with ProUTE 10/8 skis)
(Excludes 2026 EXT Special 858 with C&A skis)
