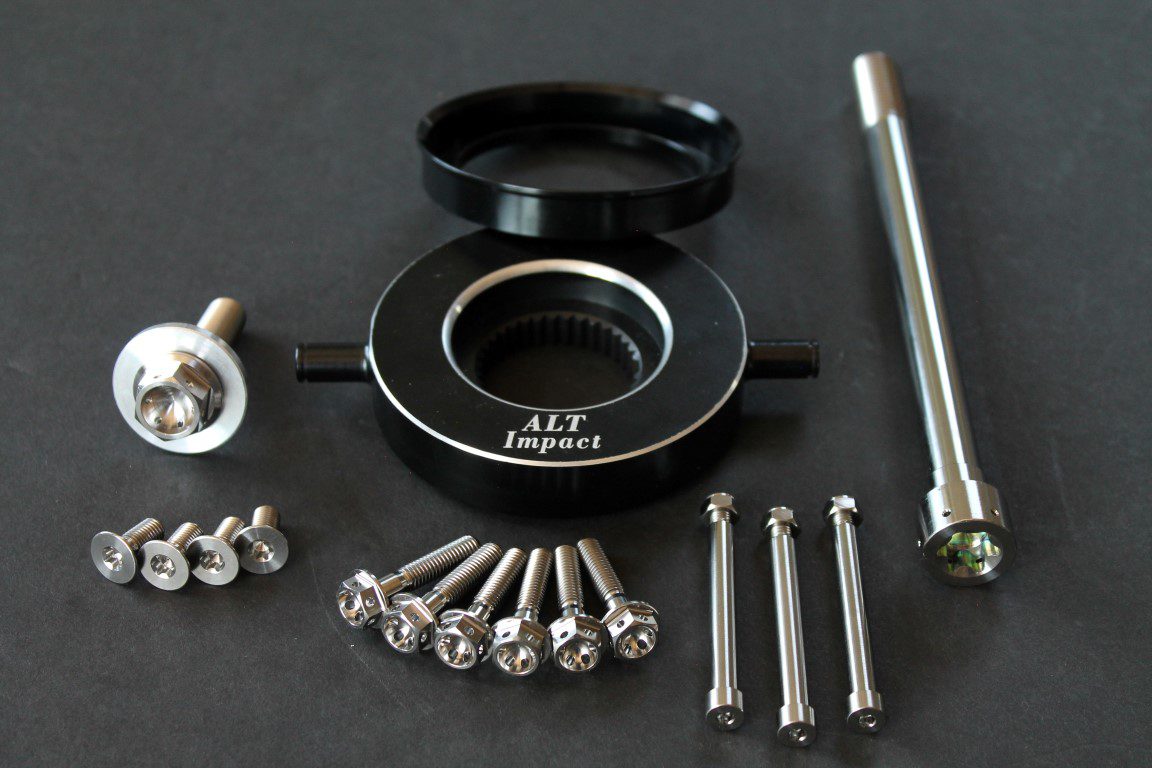

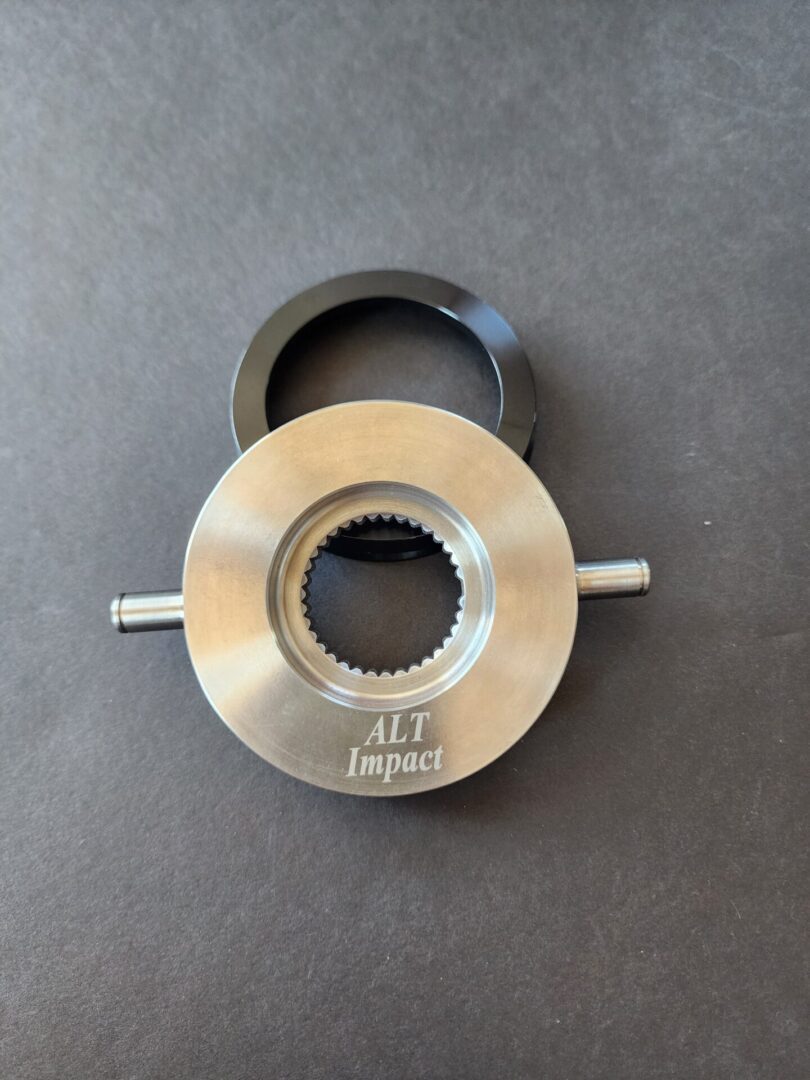

This is the Ultimate lightweight clutch kit. Saves 382 grams of rotating mass. Impressive throttle response that is teamed up with our titanium clutch bolts, titanium clutch cover bolts and weigh pins with titanium nuts. Bolts are titanium grade 5 “Ultimate minimum yield strength of 10,000 PSI” more than stock bolt. Lifetime warranty on titanium spider. 2 year warranty on 7075 Aluminum Billet Secondary Spider.



We recommend a small drop Loctite for the primary bolt and it is a must on the secondary bolt, blue is sufficient. Under no circumstances should pneumatic tools be used. Apply no heat. If the clutch is already torqued to factory settings install the new titanium bolts at our recommended torque specs 80 ft. lbs. on primary, 25ft lbs. on the secondary, it will handle factory torque specs, but this is what we have been using since 2005. If the clutch has been removed, reinstall with the factory clutch bolt and set it to factory recommendations. Then remove the factory bolt and replace with the titanium bolt and torque to our recommendation 80ft. lbs.

Primary Clutch Head Bolt is a T60 torx
